Description

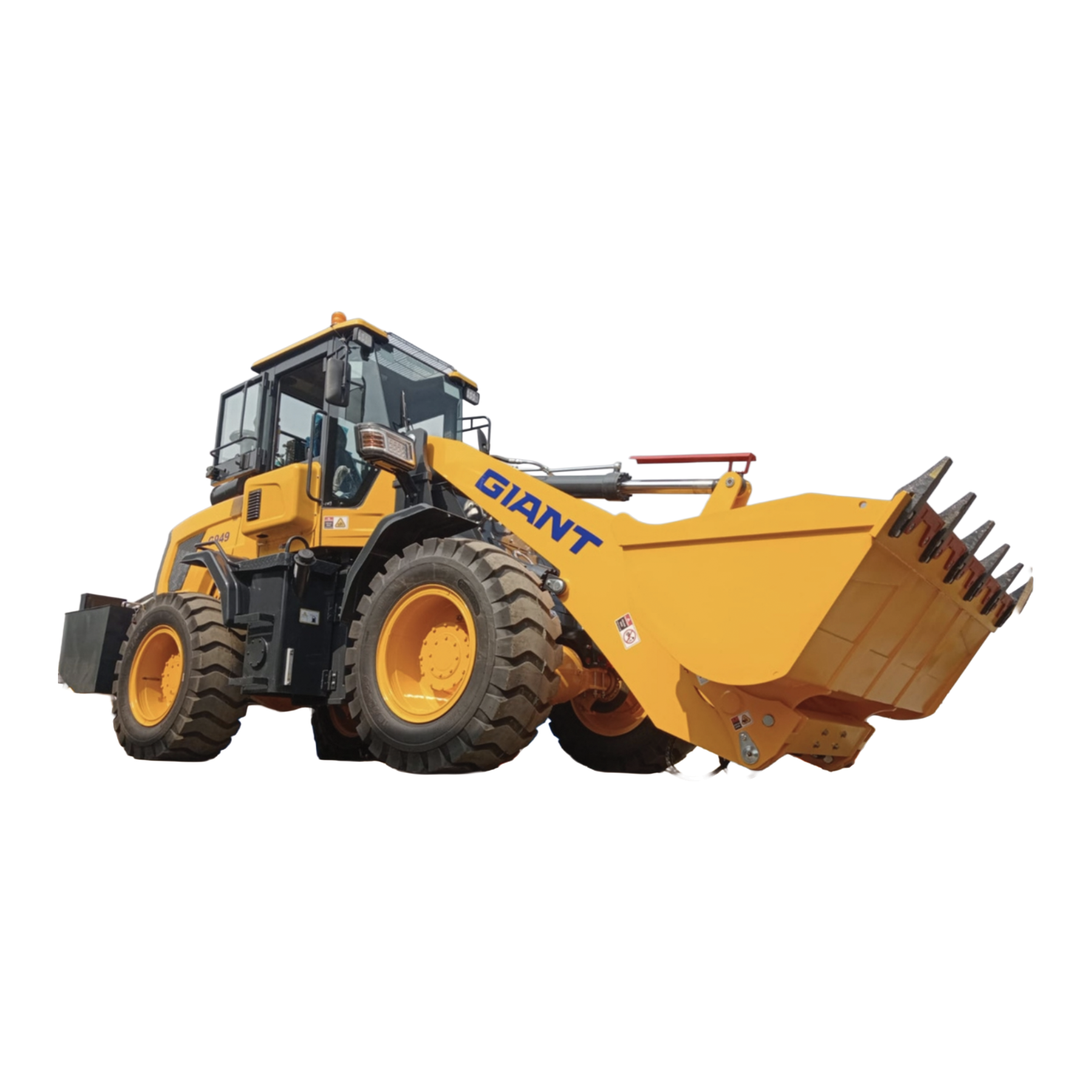

The GIANT G949 Wheel Loader delivers exceptional lifting power and reliability, powered by a Yuchai 4105T engine producing 85 kW (115 HP). It features a heavy-duty large hub reduction axle, high hydraulic output of 160 L/min, and a spacious enclosed cab with air conditioning and radio for enhanced operator experience.
With a bucket capacity of 1.2 m³, dumping height of 3800 mm, and rated loading capacity of 2800 kg, this machine is built for serious loading operations. The reinforced boom, thick 30 mm arms, and advanced axle configuration make it a trusted companion on large-scale jobsites. Its wide wheelbase and rugged tyres deliver stability on uneven ground, while the diverse attachment options allow the G949 to adapt across seasons and industries.
Specifications Table
| Specification | GIANT G949 |
|---|---|
| Engine | Yuchai 4105T (85 kW / 115 HP), 4800 cc |
| Transmission | Separated 300 |
| Hydraulic Flow | 160 L/min |
| Working Pressure | 18 MPa |
| Axle | Large Hub Reduction Axle |
| Tyres | 16/70-24 |
| Dumping Height | 3800 mm |
| Unloading Distance | 930 mm |
| Machine Weight | 6400 kg |
| Dimensions (L x W x H) | 6725 mm x 2230 mm x 3020 mm |
| Bucket Width | 2200 mm |
| Bucket Capacity | 1.2 m³ |
| Rated Load Capacity | 2800 kg |
| Arm Thickness | 30 mm |
| Boom Centre Distance | 960 mm |
| Cylinder Size | 60 mm / 100 mm |
| Cylinder Diameter | 80 mm / 120 mm |
| Rubber Wheel Track | 1670 mm |
| Wheelbase | 2540 mm |
| Minimum Ground Clearance | 380 mm |
| Counterweight Type | 1900×880×650×450×370 STD Weight |
🛠️ Available Attachments
-
Grabble Bucket
-
Snowsweeper
-
Rotary Barrel Clamp
-
Bale Clamp
-
Grain Bucket
-
Pallet Fork
-
Log Fork
-
Sweeper
-
360° Rotary Grabble
-
Mixer Bucket
-
Grass Fork
-
Blade
-
4-in-1 Bucket
-
Snow Bucket with Wings
-
Snow Blade
